Jio 5G - IPv6 only on transport
Last month I got access to Jio 5G like everyone else around in Haryana. They are running a beta program with uncapped data for now. Overall it works fine for usual stuff (web surfing on popular sites, YouTube videos, music streaming etc) but 464XLAT seems to be a little buggy in IPv4 hardcoded destinations. Initially it was giving quite a few issues but many of them seem to be fixed in last few days.
Jio 5G - IPv6 only on transport

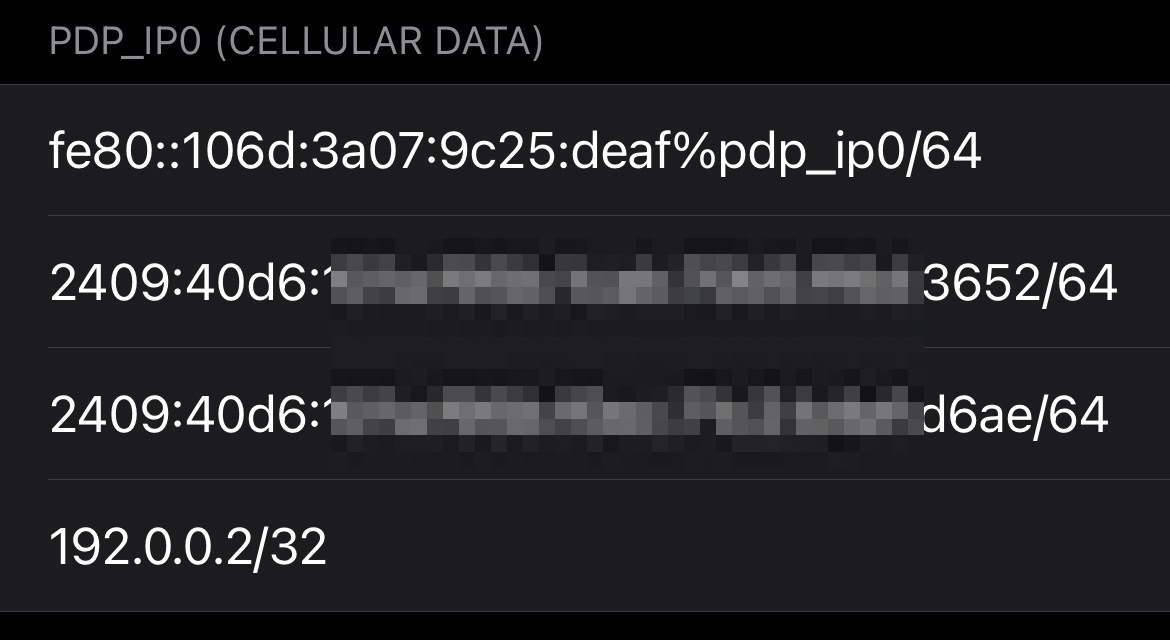

Since I got enrolled with Jio’s 5G, I see both wireguard tunnels misbehaving i.e tunnelling IPv4 packets inside IPv4 transport & tunnelling IPv4 packets inside IPv6 transport. I looked at my phone’s interfaces using Hurricane Electric’s Network tools app and it shows 192.0.0.2/32 on the PDP_IP0 interface.
This is a special pool and not just another private pool. This is called “IPv4 Service Continuity Prefix” and is defined in RFC 7335. It was originally for DS-Lite but its usage was extended to 464XLAT.
It seems like Jio 5G (and even Jio LTE after 5G is enabled once) is a 464XLAT-based network.
Let’s tether my computer to my phone & look at the traffic:
wlp5s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.20.10.8 netmask 255.255.255.240 broadcast 172.20.10.15
inet6 2409:40d6:d:8b8a:b61f:7b9f:5f21:bc7c prefixlen 64 scopeid 0x0<global>
inet6 fe80::f14a:f5ac:3b82:c073 prefixlen 64 scopeid 0x20<link>
inet6 2409:40d6:d:8b8a:cb1f:a2ea:8aa4:13c prefixlen 64 scopeid 0x0<global>
ether <masked> txqueuelen 1000 (Ethernet)
RX packets 88540 bytes 104397410 (104.3 MB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 22968 bytes 4004457 (4.0 MB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
The IPv4 network here is native. Basically, my computer <-> phone is a dual-stack network. But the phone’s WAN side is IPv6 only. This briefly explains these methods comparing IPv6 only Vs IPv6 + NAT64 & DNS64 Vs IPv6 with 464XLAT.
Let’s look at three kinds of possible traffic - 1) Where the destination is on IPv6, 2) the Destination is IPv4 only with DNS and 3) the Destination is hardcoded IPv4
1. IPv6 to IPv6 flow
anurag@desktop ~> mtr anuragbhatia.com -6 -wr
Start: 2023-02-11T02:56:07+0530
HOST: desktop.rtk Loss% Snt Last Avg Best Wrst StDev
1.|-- 2409:40d6:d:8b8a:b0b6:aecb:682b:d3ee 0.0% 10 1.8 1.8 1.8 1.9 0.1
2.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
3.|-- 2405:200:5209:20:3925::1 0.0% 10 47.7 39.3 30.4 62.1 11.2
4.|-- 2405:200:801:1900::5be 0.0% 10 27.0 40.0 27.0 57.1 10.7
5.|-- 2405:200:801:1900::5bf 0.0% 10 65.3 43.2 30.5 65.3 13.0
6.|-- 2405:203:10:8200:130:26:30:99 0.0% 10 56.9 57.4 44.6 81.4 12.5
7.|-- 2405:200:1605:600:49:44:220:b3 0.0% 10 70.4 44.2 33.1 70.4 12.2
8.|-- 2405:200:1605:600:49:44:220:b3 0.0% 10 38.8 46.4 35.3 61.0 9.6
9.|-- 2620:0:890::100 0.0% 10 42.6 47.9 36.0 67.3 8.1
anurag@desktop ~>
2. IPv6 to IPv4 only with DNS
To date, github.com is on IPv4 only. Let’s look at the mtr over IPv6:
anurag@desktop ~> mtr github.com -6 -wr
Start: 2023-02-11T03:01:28+0530
HOST: desktop.rtk Loss% Snt Last Avg Best Wrst StDev
1.|-- 2409:40d6:d:8b8a:b0b6:aecb:682b:d3ee 0.0% 10 1.8 5.5 1.6 38.4 11.5
2.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
3.|-- 2405:200:5209:20:3925::1 0.0% 10 30.3 51.2 30.3 157.4 37.7
4.|-- 2405:200:871:3631:61::7 0.0% 10 33.9 54.2 23.0 126.0 37.3
5.|-- 64:ff9b::ac11:b642 0.0% 10 28.8 64.2 28.8 233.0 61.3
6.|-- 64:ff9b::c0a8:7e32 0.0% 10 43.4 62.9 29.6 197.2 50.3
64:ff9b::c0a8:7e30
7.|-- 64:ff9b::c0a8:7e31 0.0% 10 58.3 59.1 33.9 161.4 37.5
8.|-- 64:ff9b::ac10:1221 0.0% 10 62.9 54.7 36.3 125.6 27.0
9.|-- 64:ff9b::ac10:1221 0.0% 10 67.8 64.6 35.4 232.9 60.0
10.|-- reliancejio.del01-96cbe-1b.ntwk.msn.net 0.0% 10 35.6 68.4 35.6 197.2 54.7
11.|-- ae20-0.del01-96cbe-1a.ntwk.msn.net 0.0% 10 38.6 68.8 37.3 165.1 50.2
12.|-- ae32-0.ear01.bom02.ntwk.msn.net 0.0% 10 61.8 74.6 48.7 142.2 32.2
13.|-- be-23-0.ibr03.bom02.ntwk.msn.net 0.0% 10 61.0 87.7 61.0 218.1 47.9
14.|-- be-5-0.ibr01.pnq21.ntwk.msn.net 0.0% 10 66.5 96.0 57.6 182.5 44.4
15.|-- ae106-0.rwa04.pnq21.ntwk.msn.net 0.0% 10 60.5 77.6 58.8 146.7 25.4
16.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
anurag@desktop ~>
So this shows the use of DNS64. The DNS server on my system is my cell phone which acts as a forwarder and forwards packets to the DNS node of Jio.
anurag@desktop ~> dig github.com aaaa +short
64:ff9b::14cf:4952
anurag@desktop ~>
For comparison here’s a reply at the same time from say Google’s 8.8.8.8:
anurag@desktop ~> dig github.com aaaa @8.8.8.8 +short
anurag@desktop ~>
(i.e no IPv6 AAAA DNS record)
3. IPv6 to IPv4 only with hardcoded IPv4, no DNS
For anyone familiar with NAT64 - this specific case used to be a drawback of NAT64+DNS64. For cases with no DNS, the system could not give the “fake” AAAA reply and hence connection would not be established. Let’s look at the trace here:
anurag@desktop ~> mtr -wr 1.1.1.1
Start: 2023-02-11T03:06:49+0530
HOST: desktop.rtk Loss% Snt Last Avg Best Wrst StDev
1.|-- _gateway 0.0% 10 1.8 19.6 1.7 87.4 32.5
2.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
3.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
4.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
5.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
6.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
7.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
8.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
9.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
10.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
11.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
12.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
13.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
14.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0
15.|-- one.one.one.one 0.0% 10 59.1 114.8 57.8 344.2 95.7
anurag@desktop ~>
For all random IPv4, I see the same result. mtr completes but no middle hops. Hop 1 is visible (which is my cell phone) because LAN has native IPv4. A possible reason (my guess which I need to validate with some friends) is that there is no IPv4 on transport, and the “TTL time exceeded” ICMP message cannot be sent over an IPv6-only network. We see the last hop here possibly because ICMP packets with destination are part of CGNAT translation and hence ICMP message was carried inside IPv6 packets.
I can send packets to 1.1.1.1 directly.
anurag@desktop ~> ping -c 5 1.1.1.1
PING 1.1.1.1 (1.1.1.1) 56(84) bytes of data.
64 bytes from 1.1.1.1: icmp_seq=1 ttl=53 time=82.2 ms
64 bytes from 1.1.1.1: icmp_seq=2 ttl=53 time=78.5 ms
64 bytes from 1.1.1.1: icmp_seq=3 ttl=53 time=77.6 ms
64 bytes from 1.1.1.1: icmp_seq=4 ttl=53 time=71.4 ms
64 bytes from 1.1.1.1: icmp_seq=5 ttl=53 time=86.1 ms
--- 1.1.1.1 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4006ms
rtt min/avg/max/mdev = 71.395/79.149/86.063/4.897 ms
anurag@desktop ~>
Thus https://1.1.1.1 on my browser works as well as one would expect.
Ending this post with a 5G speed test! 😄
